Electromagnetic holding magnet
High holding force in a compact design, our electromagnets are available in a range of fixings, sizes and forces.
Enquire NowKey features
- Available in a range of sizes Ø15mm to Ø180mm
- Axial forces ranging from 40 to 40,000N
- Made in the UK
- Compact design
- High quality, cost effective package
- Armature keeper plates available
- Dual-fixing
- Special voltages/ forces/ mountings available on request
Product description
Our type 58 electromagnetic holding magnets offer a reliable solution for industrial applications where significant holding force and low power consumption is required.
Available in standard sizes from Ø15 to Ø180mm in diameter, with a force of 90 to 15,000N and special designs in the range up to 280mm and 40,000N on request.
Electromagnetic holding magnets consist of a steel magnet housing and a DC-excited internal coil which when power is applied will securely hold ferromagnetic parts. As they are ‘energised-to-hold’, electromagnets become magnetised when electric current is applied, immediately releasing hold when the electric current is removed and the coil is de-energised.
Key features
- Available in a range of sizes Ø15mm to Ø180mm
- Axial forces ranging from 40 to 40,000N
- Made in the UK
- Compact design
- High quality, cost effective package
- Armature keeper plates available
- Dual-fixing
- Special voltages/ forces/ mountings available on request
Product description
Our type 58 electromagnetic holding magnets offer a reliable solution for industrial applications where significant holding force and low power consumption is required.
Available in standard sizes from Ø15 to Ø180mm in diameter, with a force of 90 to 15,000N and special designs in the range up to 280mm and 40,000N on request.
Electromagnetic holding magnets consist of a steel magnet housing and a DC-excited internal coil which when power is applied will securely hold ferromagnetic parts. As they are ‘energised-to-hold’, electromagnets become magnetised when electric current is applied, immediately releasing hold when the electric current is removed and the coil is de-energised.
To download the technical drawings for this product fill in your details below and we will send you a link to the files.
"*" indicates required fields
Electromagnetic holding magnet technical drawing

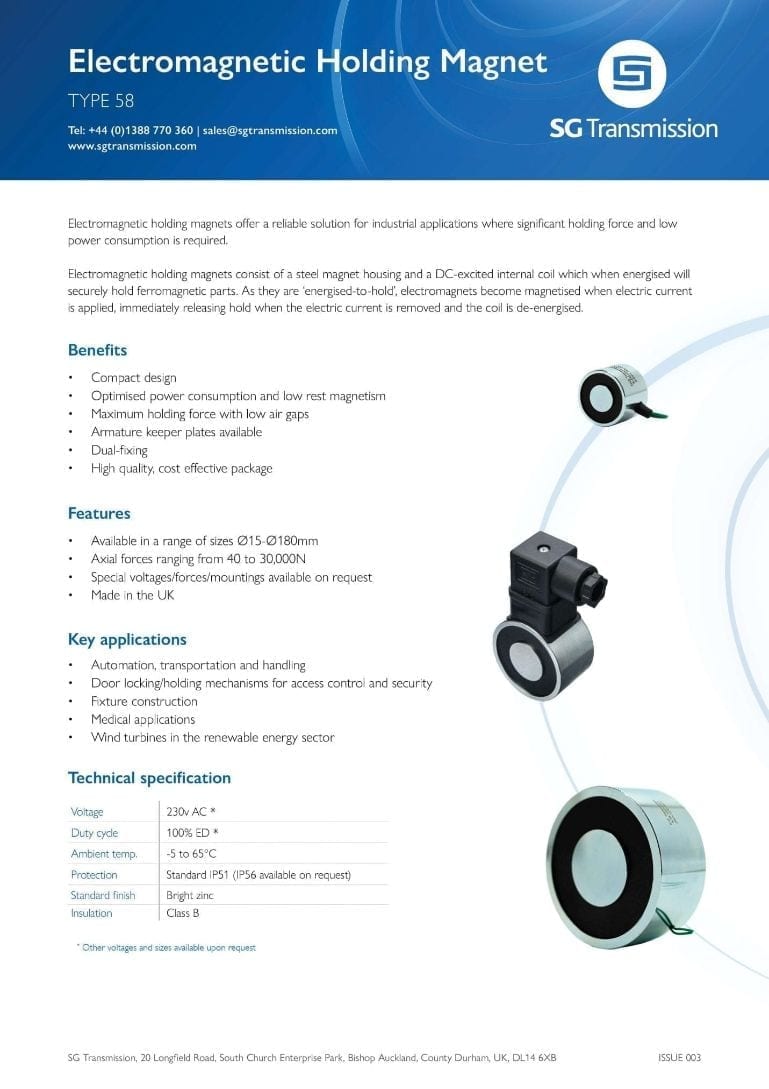

See related downloads for full datasheet
Download drawing| Size | Axial force (N) | P20 (W) | Magnet weight (Kg) | Armature weight (Kg) | A | B | G1 | G2 | H1 | H2 | K | R | S | T | U |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 12 | 1.5 | 0.02 | 0.01 | 15 | 12 | - | 6 | - | M3 | - | - | - | 2 | - |
| 20 | 90 | 3.0 | 0.05 | 0.01 | 20 | 15 | - | 4 | - | M4 | 5 | - | 7 | 3 | M3 |
| 25 | 140 | 3.7 | 0.07 | 0.01 | 25 | 20.5 | 4 | 10 | M3 | M5 | 6.5 | 15 | 7 | 3 | M3 |
| 30 | 230 | 3.8 | 0.20 | 0.04 | 30 | 24 | 5 | 5 | M3 | M5 | 7 | 18 | 8 | 5 | M4 |
| 40 | 500 | 4.6 | 0.23 | 0.05 | 40 | 27.5 | 5 | 10 | M4 | M6 | 9 | 26 | 8 | 5 | M4 |
| 50 | 750 | 5.4 | 0.40 | 0.10 | 50 | 30.5 | 5 | 10 | M4 | M6 | 8.5 | 34 | 10 | 6 | M4 |
| 65 | 1,400 | 9.0 | 0.75 | 0.20 | 65 | 35.5 | 6 | 12 | M5 | M8 | 8.5 | 40 | 12 | 8 | M5 |
| 80 | 2,200 | 14.2 | 1.25 | 0.40 | 80 | 38.5 | 5 | 15 | M6 | M10 | 10.5 | 50 | 14 | 10 | M6 |
| 100 | 3,500 | 20 | 2.20 | 0.75 | 100 | 43.5 | 5 | 18 | M6 | M10 | 12.5 | 75 | 20 | 12 | M8 |
| 150 | 9,000 | 37 | 6 | - | 150 | 56 | - | 24 | - | M16 | - | - | - | 17 | - |
| 180 | 15,000 | 49 | 10 | - | 180 | 63 | - | 36 | - | M24 | - | - | - | 21 | - |
