Ball bearing mounted clutch
A low-cost and simple option for the transmission of motion in a drive train.
Enquire NowKey features
- High speed applications
- Ease of fitting
- Bearing included in design of hub
- Voltage options
Product description
The ball bearing mounted clutch offers a low-cost and simple option for the transmission of motion in a drive train. The ball bearing mounted clutch is used for mounting onto shafts for high speed and transmission of power. Specific applications can be catered for and many fixing options are available depending on the size and location of the drive components.
Enquire nowKey features
- High speed applications
- Ease of fitting
- Bearing included in design of hub
- Voltage options
Product description
The ball bearing mounted clutch offers a low-cost and simple option for the transmission of motion in a drive train. The ball bearing mounted clutch is used for mounting onto shafts for high speed and transmission of power. Specific applications can be catered for and many fixing options are available depending on the size and location of the drive components.
Enquire now
To download the technical drawings for this product fill in your details below and we will send you a link to the files.
"*" indicates required fields
Ball bearing mounted clutch technical drawing

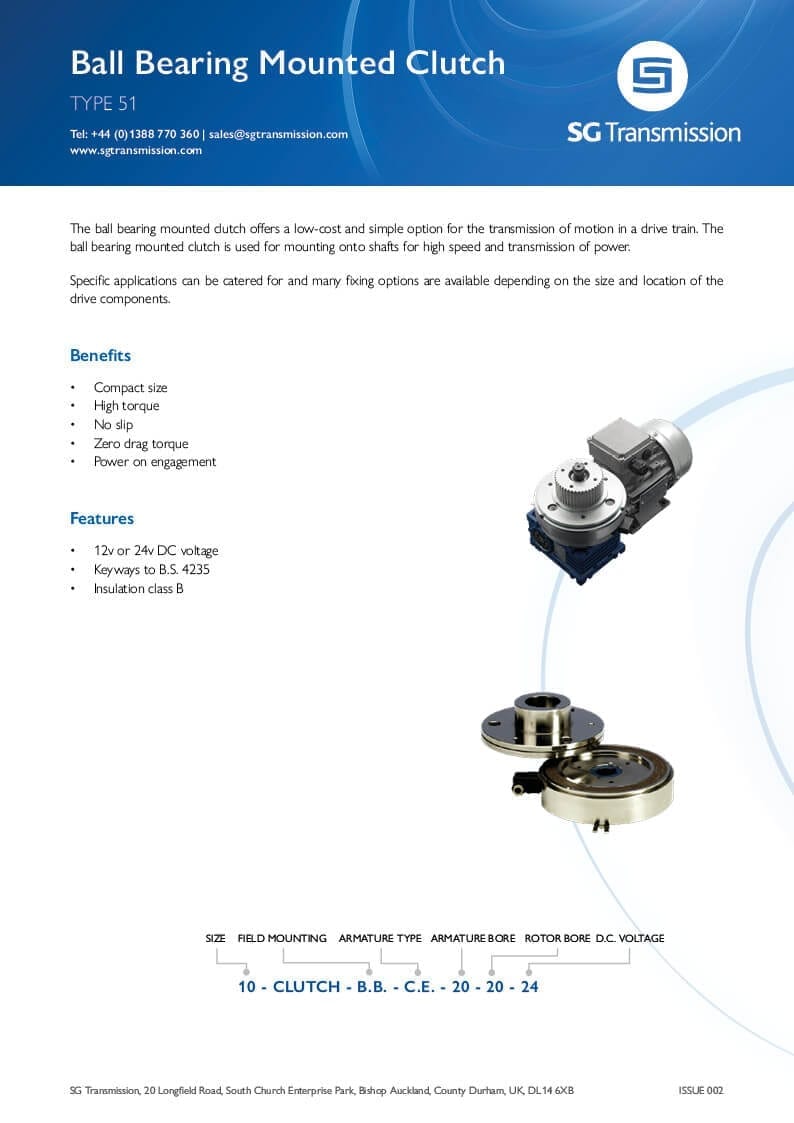

See related downloads for full datasheet
Download drawingsSee related downloads for full datasheet
| Size | Torque TS (Nm) | Max P20 (W) | A2 | A3 | B | C3 | C4 | C5 | Max E1 H7 | Max E2 H7 | E3 | E5 | E6 K6 | E7 | G | J | K | M | N2 | N3 | S1 | S3 | T | U2 | U3 | U4 | U6 | U7 | V | W1 | W2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 05 | 3 | 10 | 50 | 54 | 33 | 30 | 12 | 12 | 8 | 15 | 7 | 24 | 30 | 10 | 0.2 | 28 | 6.1 | 26 | 38 | 24 | 15.3 | 18 | 1.5 | 3x3.1 | M4 | SLOT 5.10 | 3xM3 | M4 | 1.5 | 9.5 | 12 |
| 06 | 8 | 12 | 63 | 67 | 44 | 40 | 15 | 20 | 12 | 17 | 12 | 27 | 38 | 16.5 | 0.2 | 36 | 6.1 | 28.5 | 46 | 33 | 19 | 27 | 1.5 | 3x3.1 | M4 | SLOT 5.10 | 3xM4 | M5 | 1.5 | 11.5 | 20 |
| 07 | 8 | 12 | 66.5 | 68 | 40 | 36 | 15 | 20 | 12 | 17 | 12 | 27 | 38 | 16.5 | 0.2 | 40 | 6.1 | 28.5 | 46 | 33 | 19 | 27 | 1.5 | 3x3.1 | M5 | HOLE 5.10 | 3xM4 | M5 | 1.5 | 11.5 | 20 |
| 08 | 16 | 18 | 80 | 85 | 37 | 32 | 20 | 23.5 | 17 | 20 | 15 | 32 | 45 | 25 | 0.2 | 45 | 8 | 28 | 60 | 37 | 24.7 | 34 | 1.5 | 3x4.1 | M4 | SLOT 5.00 | 3xM4 | M5 | 2 | 16 | 25 |
| 10 | 32 | 25 | 100 | 107 | 55 | 49 | 25 | 32 | 25 | 30 | 20 | 42 | 55 | 35 | 0.2 | 58.5 | 9 | 39.1 | 76 | 47 | 30 | 41 | 2 | 3x5.1 | M6 | HOLE 5.50 | 4xM4 | M6 | 2 | 19 | 30 |
| 11 | 32 | 25 | 105 | 107 | 52 | 46 | 25 | 32 | 25 | 30 | 20 | 42 | 55 | 35 | 0.2 | 58.5 | 9 | 39.1 | 76 | 47 | 30 | 41 | 2 | 3x5.1 | M6 | HOLE 5.50 | 4xM4 | M6 | 2 | 19 | 30 |
| 13 | 65 | 32 | 125 | 133 | 59 | 52 | 30 | 42 | 28 | 35 | 25 | 49 | 64 | 40 | 0.3 | 71 | 10 | 43 | 95 | 52 | 37.2 | 53.5 | 2 | 3x6.1 | M6 | SLOT 6.10 | 4xM4 | M6 | 2.5 | 25 | 40 |
| 16 | 120 | 45 | 160 | 170 | 71 | 62 | 38 | 54 | 40 | 40 | 30 | 65 | 75 | 60 | 0.3 | 92 | 13 | 52.5 | 120 | 62 | 48 | 66 | 2.5 | 3x8.2 | M8 | SLOT 8.10 | 6xM5 | M8 | 9 | 30 | 50 |
| 20 | 240 | 50 | 200 | 213 | 53 | 43 | 40 | 67 | 40 | 60 | 40 | 83 | 90 | 80 | 0.5 | 127 | 16 | 52.5 | 158 | 75 | 50 | 80.9 | 3 | 3x10.2 | - | SLOT 9.50 | 4xM6 | M8 | 11 | 30. | 60 |
